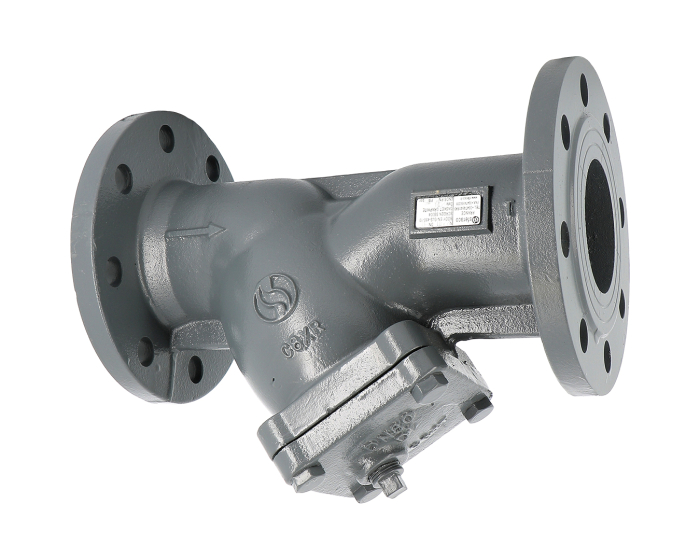

The 220 series Y-strainer is made of GGG50 ductile iron (DN50 to DN300) GG25 cast iron body (others DN) with flanges RF PN10/16, stainless steel screen and draining cap. For sewage, water treatment and irrigation.
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| DN metric | 15/21 |
| Bonnet material | Cast iron EN GJL-250 |
| Mounting direction | Horizontal or vertical |
| Screen material | AISI 304 stainless steel |
| Paint coating thickness (µm) | 70.00 |
| EN face-to-face standard | EN 558 series 1 |
| DIN face-to-face standard | DIN 3202-1 F1 |
| Face to face standard | EN 558 Series 1. DIN 3202-1 F1. NF 29354 |
| Flange type | RF |
| Accessories for flanges | Brass |
| Application | Air conditioning / Heating |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 130.0 |
| Fluid | Cold water |
| Gasket | Graphite |
| Body material | Cast iron |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| RAL (Paint) | 7011 |
| Screen (mesh) | 11/10° |
| TS max (°C) | 120 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
| Main product colour | Grey |
| Filter design | Y |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Cast iron DN15 - 1/2'' Flanged PN10/16 | 220015 | S1011228 |
€19.23
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN20 - 3/4'' Flanged PN10/16 | 220020 | S1011229 |
€22.73
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN25 - 1'' Flanged PN10/16 | 220025 | S1011230 |
€29.67
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN32 - 1''1/4 Flanged PN10/16 | 220032 | S1011231 |
€38.77
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN40 - 1''1/2 Flanged PN10/16 | 220040 | S1011232 |
€42.10
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN50 - 2'' Flanged PN10/16 | 220050 | S1011233 |
€52.23
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN65 - 2''1/2 Flanged PN10/16 | 220065 | S1011234 |
€64.10
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN80 - 3'' Flanged PN10/16 | 220080 | S1011235 |
€81.07
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN100 - 4'' Flanged PN10/16 | 220100 | S1011236 |
€109.14
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN125 - 5'' Flanged PN10/16 | 220125 | S1011237 |
€163.70
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN150 - 6'' Flanged PN10/16 | 220150 | S1011238 |
€201.21
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN200 - 8'' Flanged PN16 | 220200 | S1011239 |
€347.87
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN200 - 8'' Flanged PN10 | 220201 | S1011240 |
€347.87
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN250 - 10'' Flanged PN10 | 220250 | S1011241 |
€546.93
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN250 - 10'' Flanged PN16 | 220251 | S1011242 |
€546.93
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN300 - 12'' Flanged PN10 | 220300 | S1011243 |
€716.20
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN300 - 12'' Flanged PN16 | 220301 | S1011244 |
€716.20
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN350 - 14'' Flanged PN10 | 220350 | S1011245 |
€1,638.01
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN400 - 16'' Flanged PN10 | 220400 | S1011246 |
€2,139.29
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN450 - 18'' Flanged PN10 | 220450 | S1011247 |
€2,587.91
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN500 - 20'' Flanged PN10 | 220500 | S1011248 |
€3,601.91
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN600 - 24'' Flanged PN10 | 220600 | S1011249 |
€4,850.54
(excl. btw)
|
add to cart |
